The SmartGPU2 is an embedded graphics, audio and full datalogger processor chip mounted on a board with a touchscreen LCD. It's aimed to help developers to create advanced Graphical User Interfaces (GUIs) in a very fast and easy way without the need of having experience in handling LCDs, graphics algorithms and FAT format.



SmartGPU2 is a serial(Tx, Rx) slave device that only receives orders like drawPixel(), drawText(), drawImage(), etc, this reduces dramatically the code complexity (graphics algorithms, image decoding) and saves a lot of headaches to the programmer.


SmartGPU2 is the most flexible, featured, powerful yet easy to use graphics processor for embedded systems.

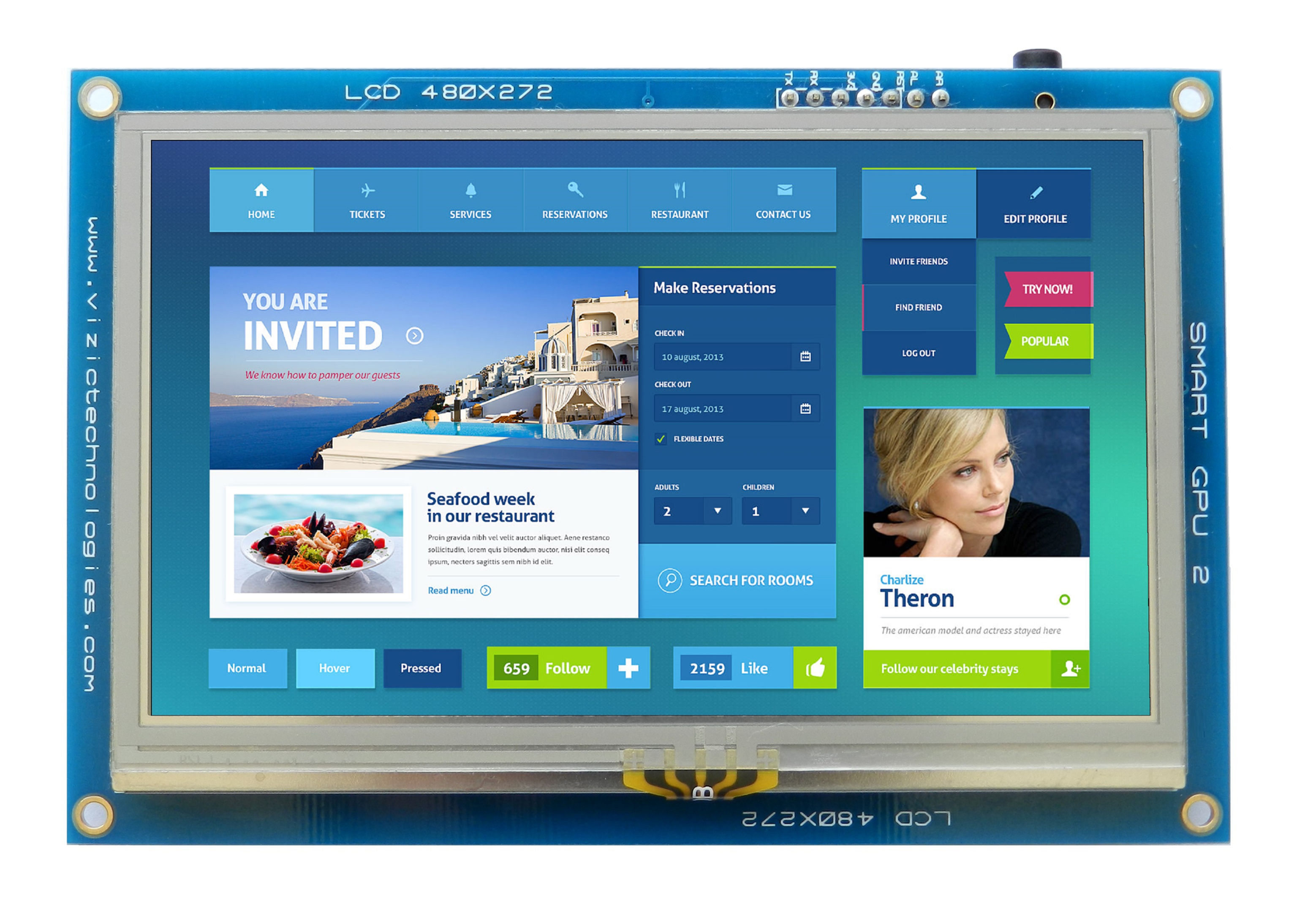

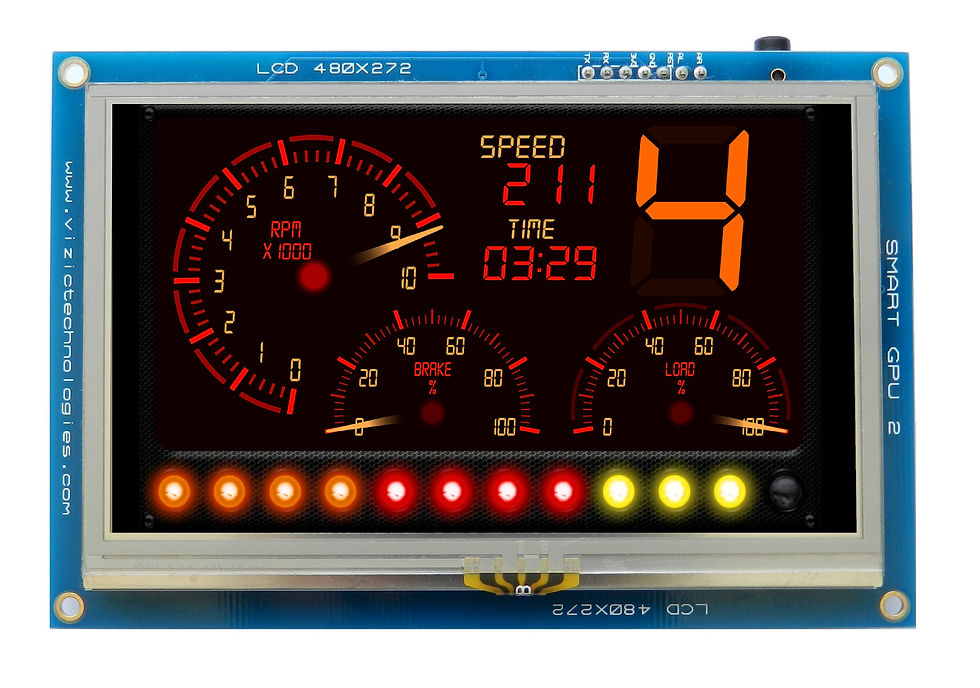

SmartGPU 2 - 4.3" LCD480X272 Touch

$149.00Price

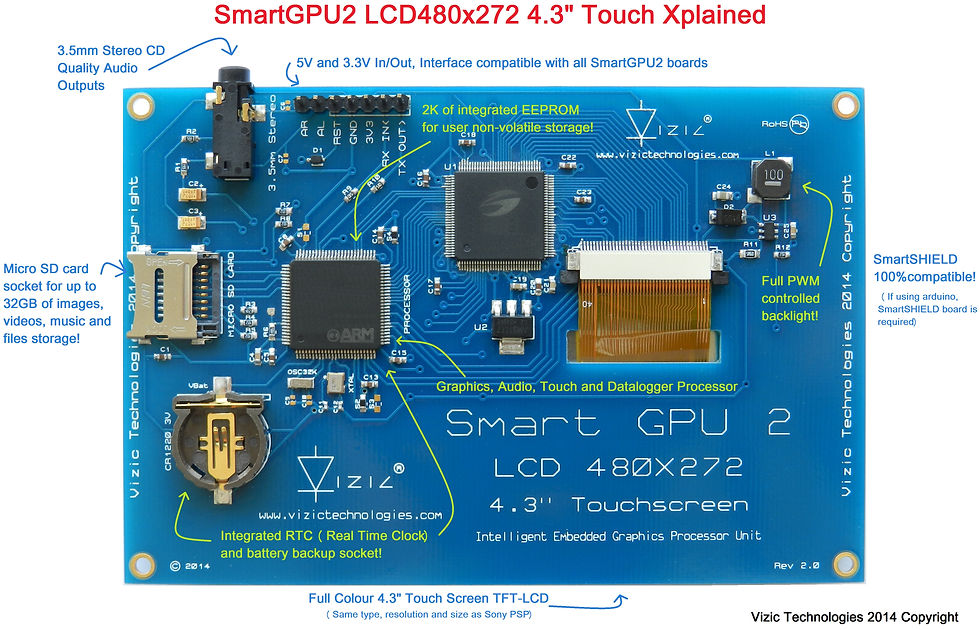

  • SmartGPU 2 Board Features:

    - 4.3“, 480x272 pixels resistive touchscreen LCD, capable of displaying 262,144 colours.

    - Easy 5 pin interface to any host device: VCC, TX, RX, GND, RESET.

    - Arduino, mbed, Raspberry, PIC, AVR, ARM, FPGA, etc, Compatible.

    - On-board microSD card socket for up to 32GB for storing images, audio and videos.

    - Integrated FAT32 File management/Data logger functions.

     - BMP and JPG images support.

    - Video playback capable.

    - Audio (CD quality) pre-amp outputs.

    - Integrated RTC - Real Time Clock with battery back-up.

    - 5V and 3V3 I/O compatible, 3V3 power supply

  • Datasheet, Command Set, Libraries and Examples in Downloads section.
